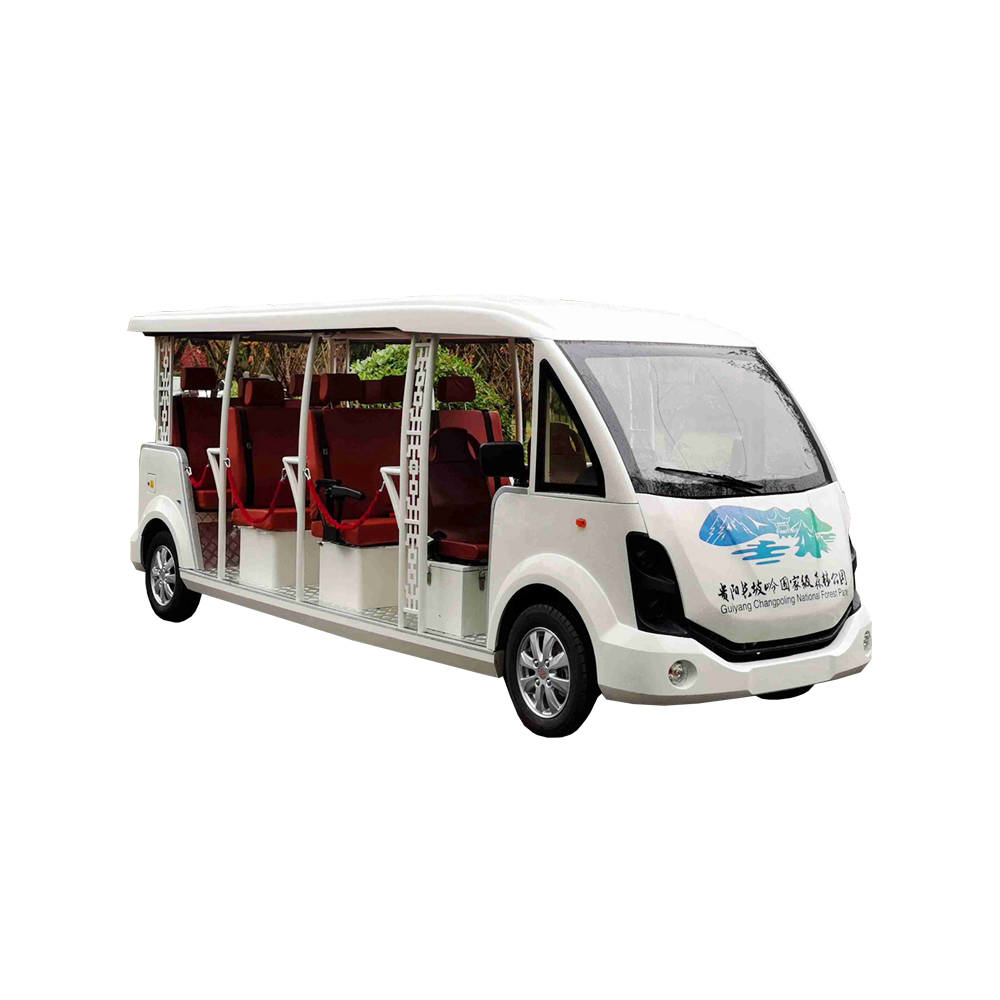

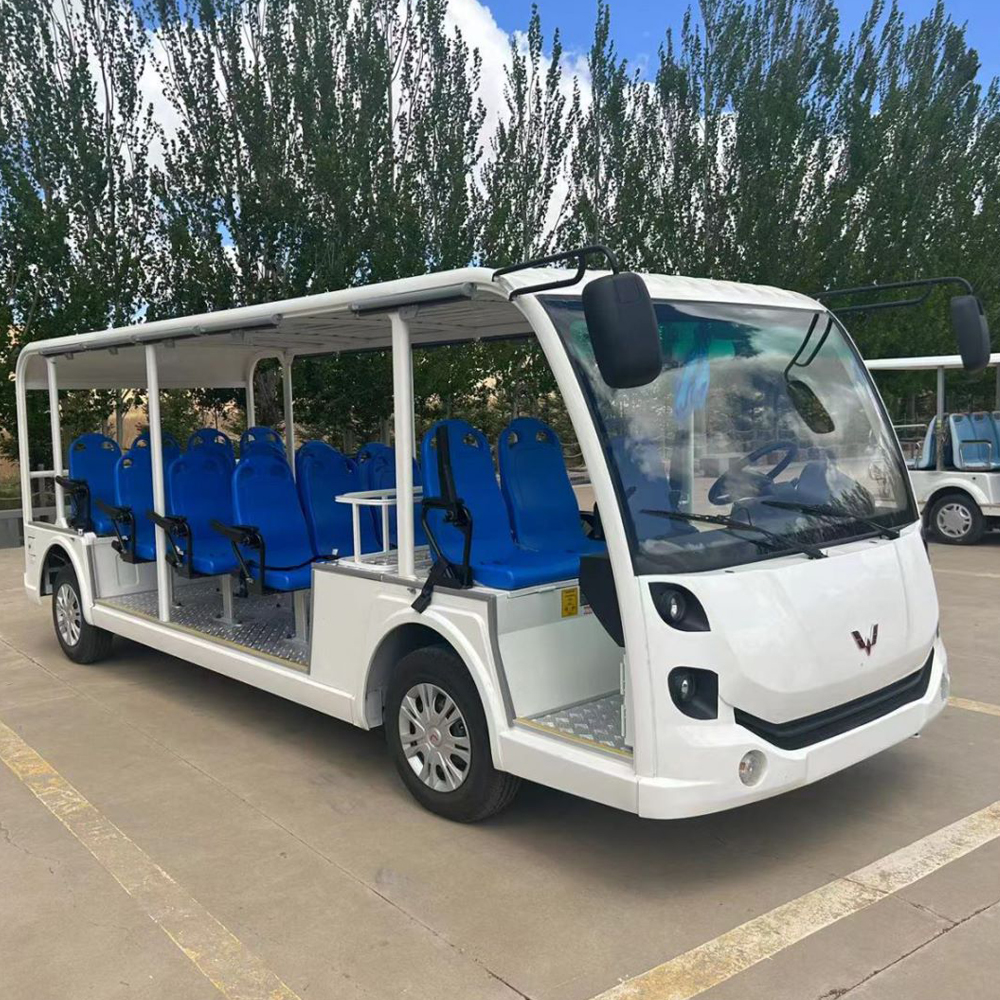

19-seat lead-acid electric sightseeing car

The Electric Sightseeing Car operates for a long time in the summer, and should be slowly accelerated during the growth and lifting process to prevent the operating current from passing through the diamond-level mechanical time load, thereby causing the coil to wrap around the engine, line, battery and speed motor to become too hot. Cause security accidents. During the rainy season, Electric Vehicle should try to minimize the use of Electric Customized Vehicles on rainy days and urban roads filled with water to prevent the motor from entering the water or short-circuiting and catching fire during the battery charging period.

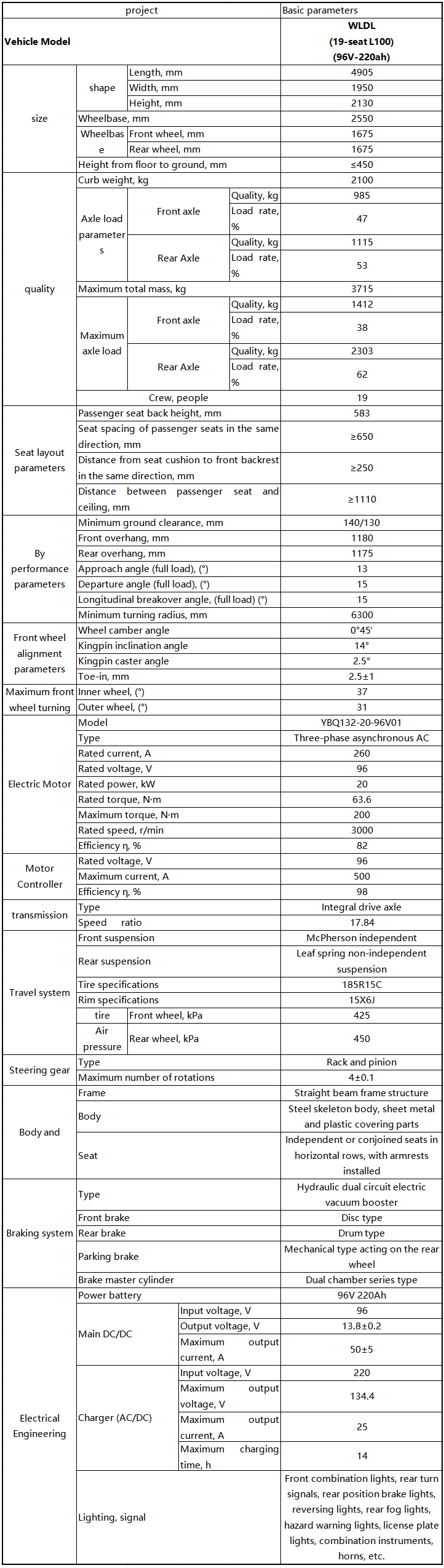

19 seats, motor controller (matched with 20KW motor), electric motor (20KW three-phase AC asynchronous motor), electronically controlled hydraulic power steering (electro-hydraulic power steering), vacuum booster and brake master cylinder assembly, rear axle (speed ratio i=17.84, matched with 20KW motor), steel wheels (tires 185R15C), wheel hub decorative covers, front row independent plastic seats (3) + middle row independent plastic seats (2 rows*4) + rear row independent plastic Seats (4) + back-to-back independent plastic seats (4), safety belts, patterned aluminum flooring, stretch mesh rain curtains, radio + speakers (2), DC/DC converter (96V, 1 ), maintenance-free lead-acid power battery (96V/220Ah battery pack), 96V car charger (with 96V/220Ah battery pack), fire extinguisher holder, driver cup holder, vehicle tools, headliner.
